EHH-D12BA/EHH-O12BB
Ducted Type Heat Pump System
EHH-D12BA/EHH-O12BB
Ducted Type Heat Pump System
12 000 BTU/H (208/230 V)
Product features
| Property | Value |
|---|---|
| Indoor unit model | EHH-D12BA |
| Outdoor unit model | EHH-O12BB |
Outdoor unit
| Property | Value | |
|---|---|---|
| Model | EHH-O12BB | |
| Capacity | Btu/h | 12,000 |
| SEER | 21.5 | |
| SEER2 | 19 | |
| HSPF5 | 9.5 | |
| Heating at 17°F | Btu/h | 10,200 |
| Heating capacity (min-max) | Btu/h | 1900~15000 |
| Cooling capacity (min-max) | Btu/h | 2100~13450 |
| MCA/MOCP | 13 / 15 | |
| Dimension ( W x H x D) | inch | 30.1 x 21.9 x 11.9 |
| Weight | lbs | 64 |
| Sound level | dB(A) | 53.5 |

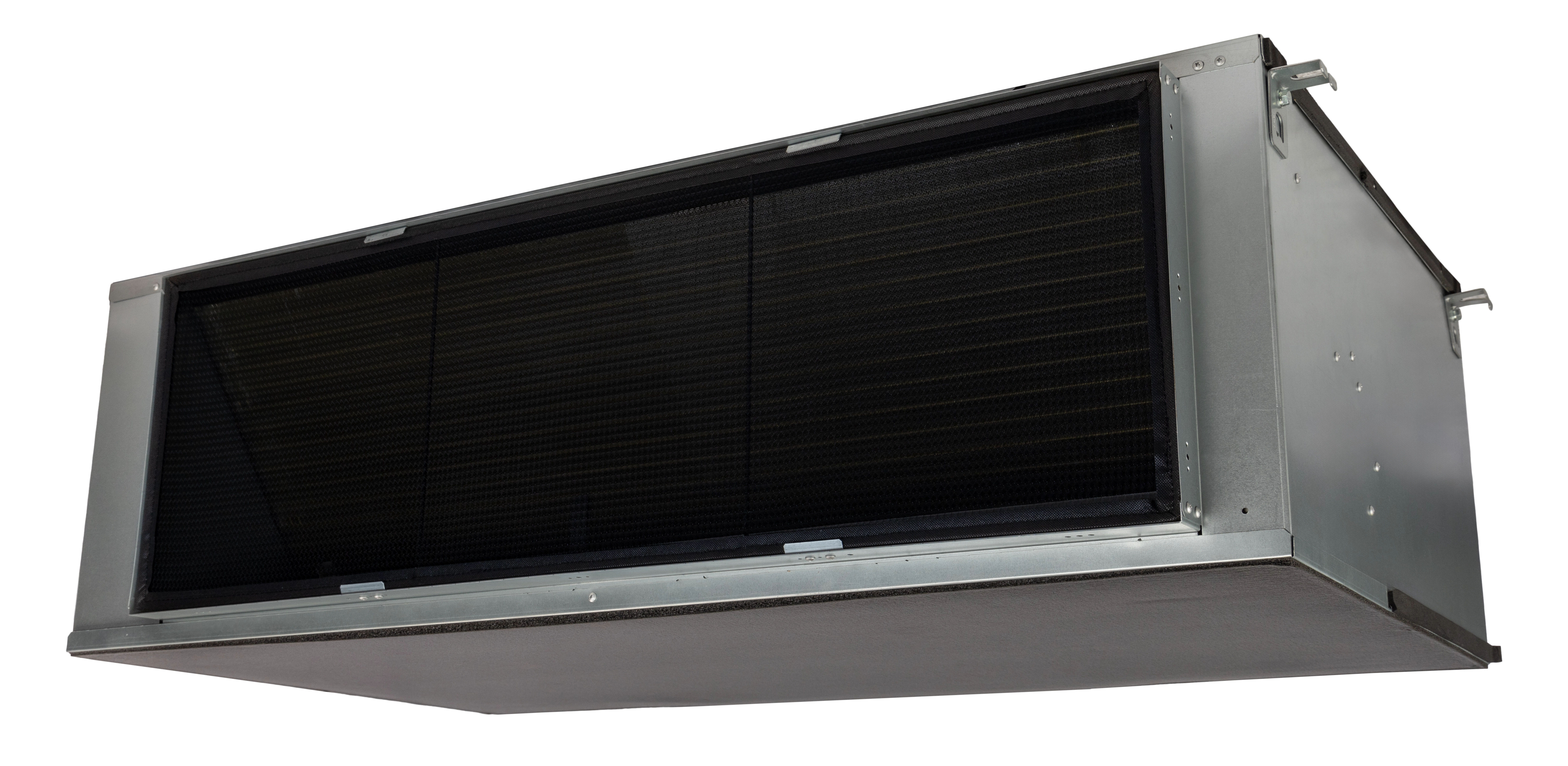

Indoor unit
| Property | Value | |
|---|---|---|
| Model | EHH-D12BA | |
| Capacity | Btu/h | 12,000 |
| Dimension ( W x H x D) | inch | 27.6 x 7.9 x 19.9 |
| Weight | lbs | 39 |
| Air flow & Noise level | ||
| Nominal sound level | dB(A) | 34.5 |
| Airflow rate (max/avg/min) | CFM | 353 / 282 / 176 |
